LoRa+GPS tracker AN-122-A03
AN-122-A03 LoRaWAN GPS Tracker is a wireless asset tracking sensor based on LoRaWANTM standard protocol. It has been integrated with GPS, G-sensor, anti-dismantle switch sensor and power switch module. GPS positioning data will be acquired when the device moves. It has functions of anti-dismantle and alarm sound. It is in small size, with long battery life, low power consumption that makes it has has return to deployment.
Application scenarios
Widely used in the supervision of asset tracking, livestock supervision, commodity supervision, Shared bicycles and other fields.
Product features:
◊ Support LoRaWANTM protocol
◊ High accuracy
◊ Built-in G-sensor gravity sensor, support object movement detection
◊ Waterproof IP65
◊ Working Temperature: -30℃~80℃
◊ Built-in anti-dismantle sensor
◊ Rechargeable battery
◊ Low power consumption
◊ Range up to 1200m(It depends on the working conditions)
Technical Parameter:
Item | Description |
Processor | ARM-Cotex M3 |
Kernel: CPU Clock Speed 32MHz | |
32bit | |
Memory | 128KB Flash |
16KB RAM | |
4KB EEPROM | |
G-sensor | Support gravity testing：2g/4g/8g/16g |
GPS | High precision: 5m-10m, support GPS and Beidou positioning |
Anti-dismantle switch | Closure removed or dismantled detection |
Turn on/off button | for manual operation |
GPS antenna | 1575.42MHZ, bandwidth±2MHZ, 50Ω, gain: 2dbi |
LoRa antenna | bandwidth±40MHZ, 50Ω, gain: 1dbi |
Data Tx rate | 300bps～5.4Kbps |
Frequency optional | CN470MHz~510MHz; EU863MHz~870MHz; US902MHz~928MHz; AS920~923MHz; AS923MHz~925MHz; AU 915MHz~928MHz |
Protocol | Support LoRaWANTM, P2P |
Max Tx power | 20dbm |
Rx sensitivity | -140dBm |
Battery volume | 4.2V/2400mAh rechargeable Li-SOCl2 battery |
Rx sensitivity | 5V/1000mA |
Working temperature | -30℃~+80℃ |
Working humidity | 10%-90% |
Power supply | Built-in Li-SOCL2 battery |
Power supply | DC4.2V |
In sleeping mode | ≤20uA |
In Tx mode | 150mA |
IP grade | IP65 |
Dimension | 111*65*33.5mm |

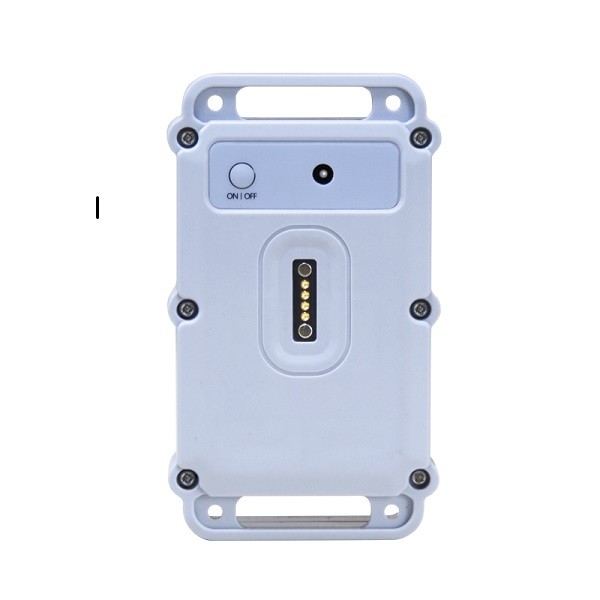

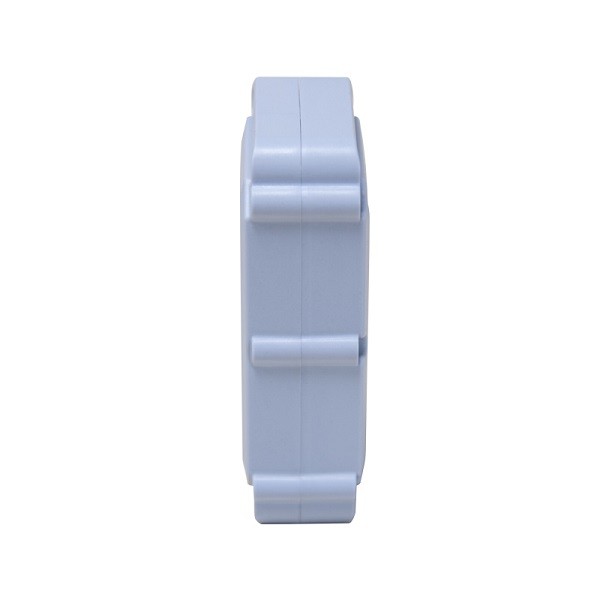

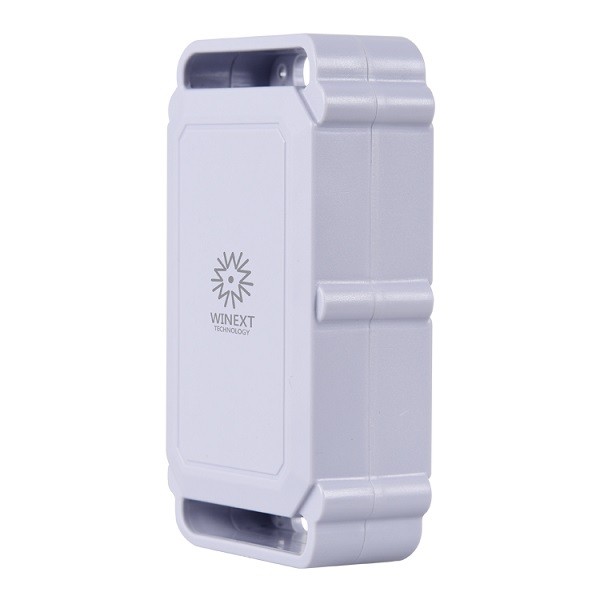

Images:
